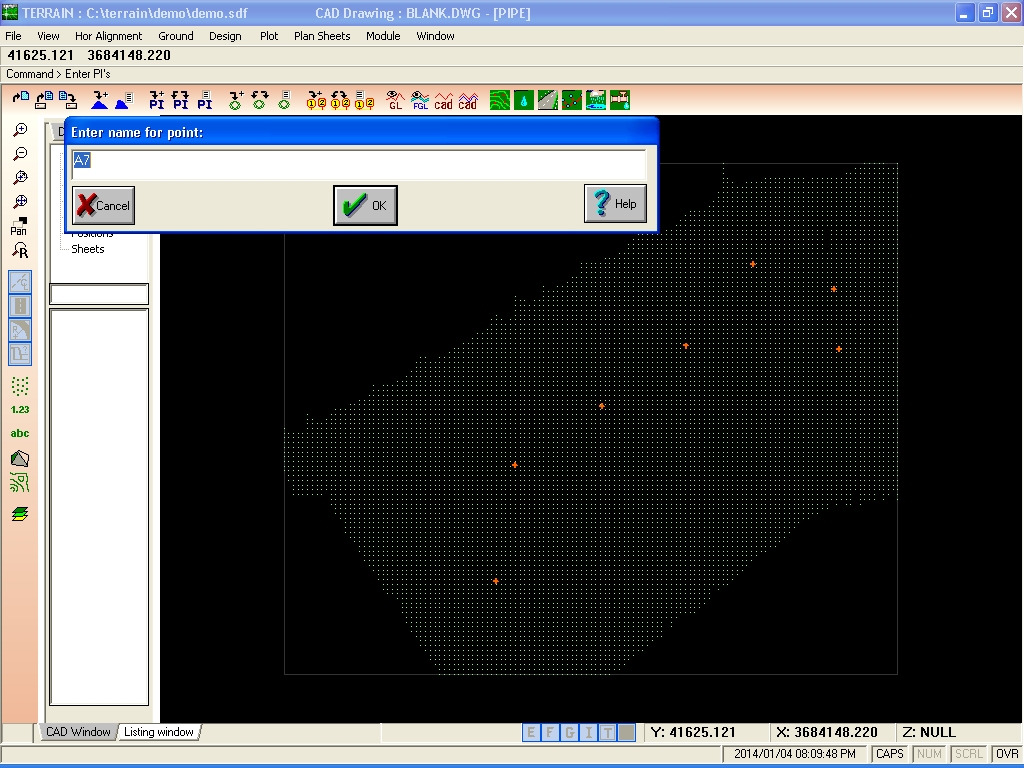

Specifying horizontal points of intersection

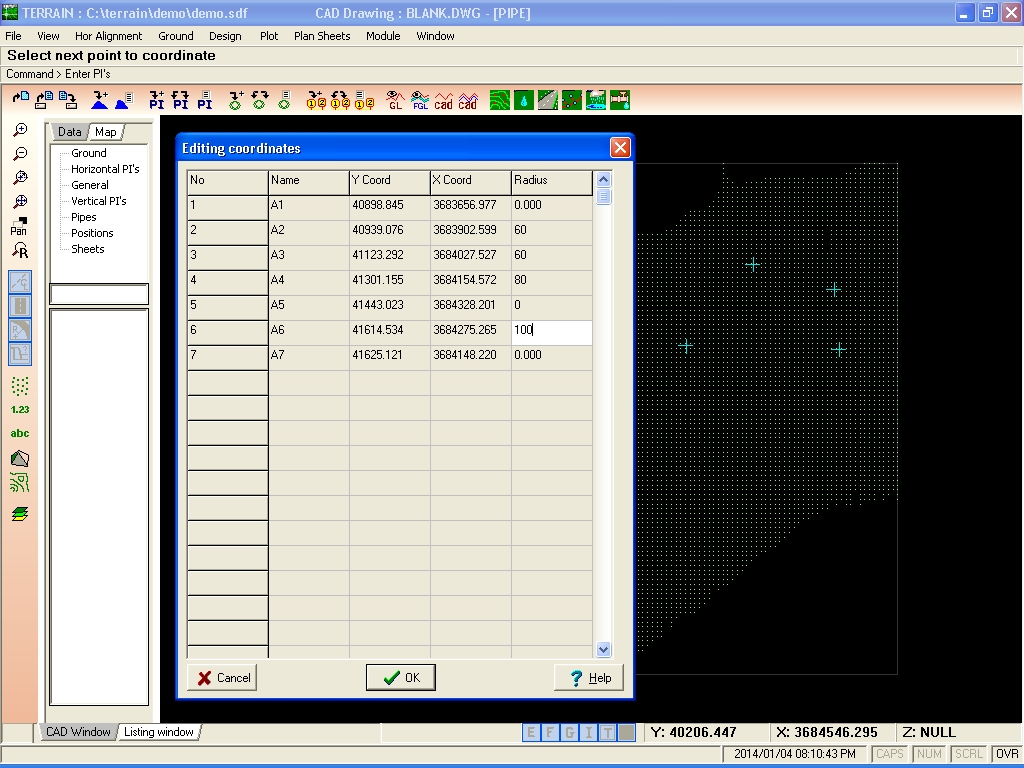

Editing horizontal alignment data

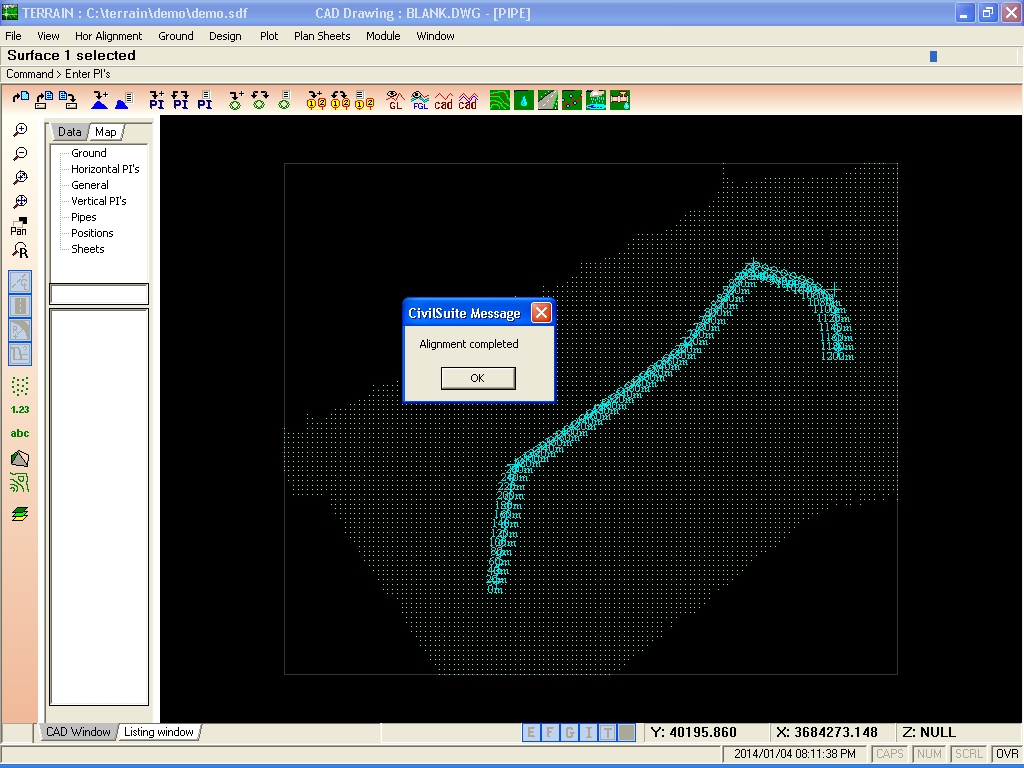

Running the horizontal alignment

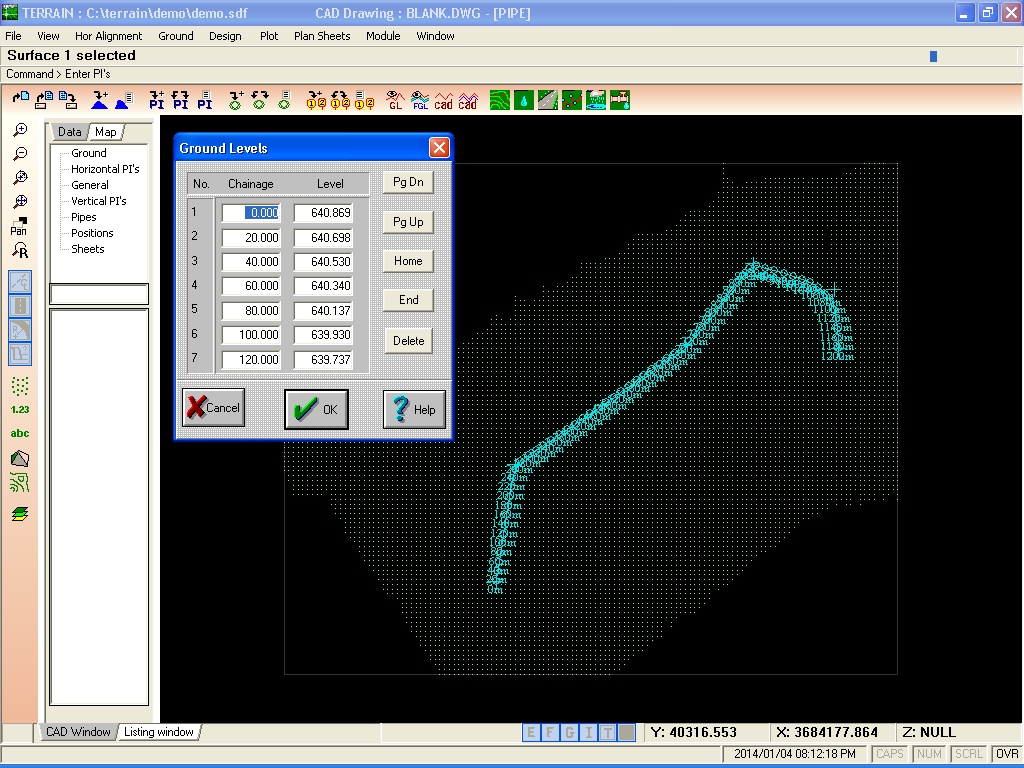

Editing ground levels as generated

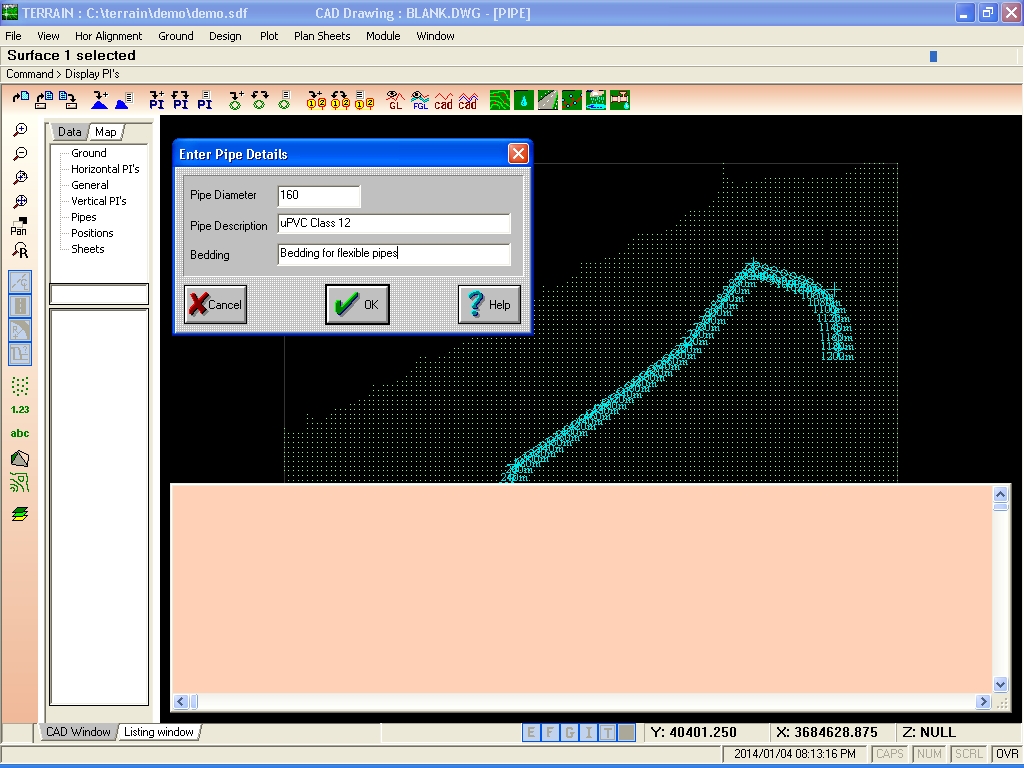

Specifying pipe parameters

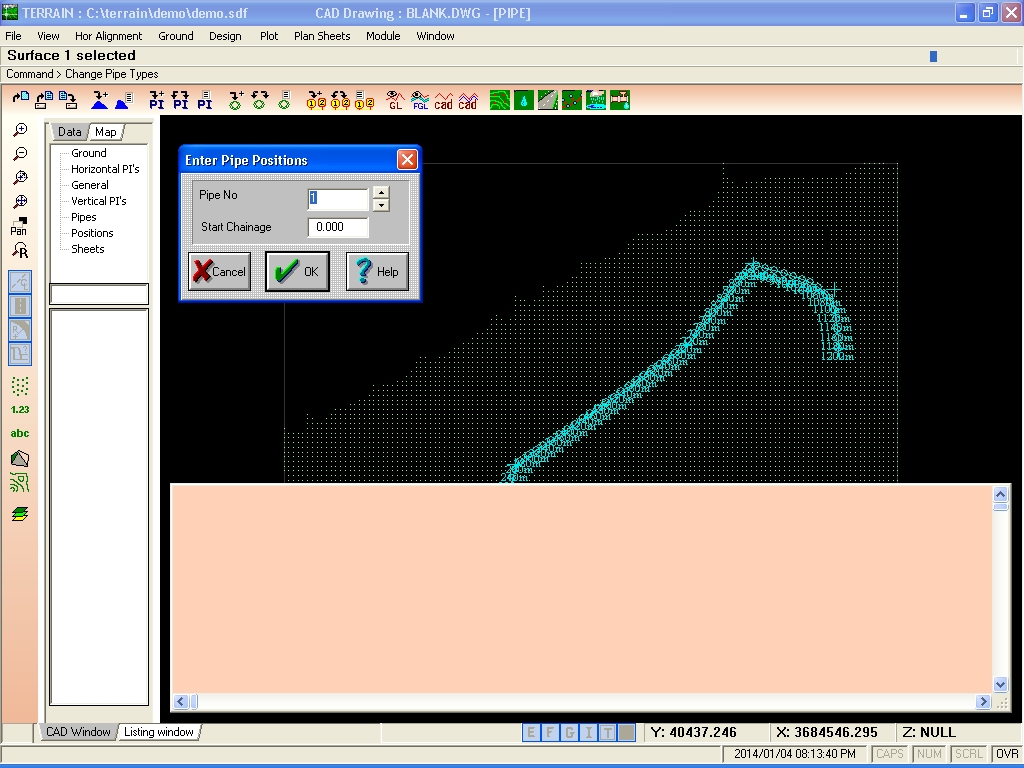

Specifying pipe positions

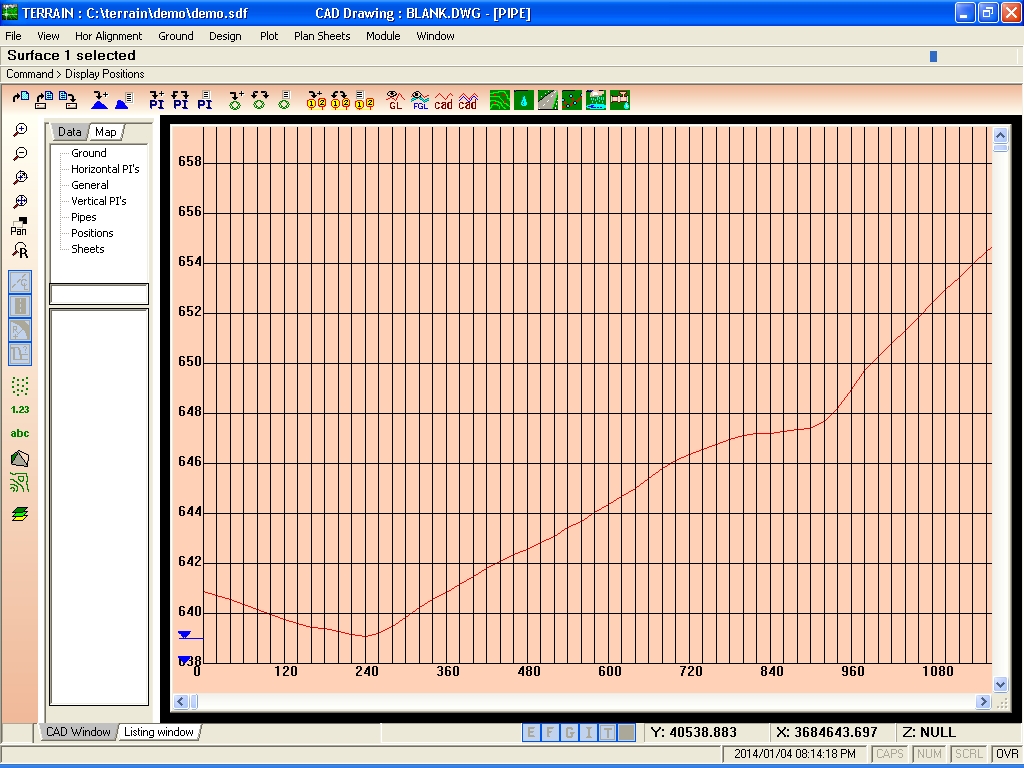

Pre-viewing the ground longitudinal section

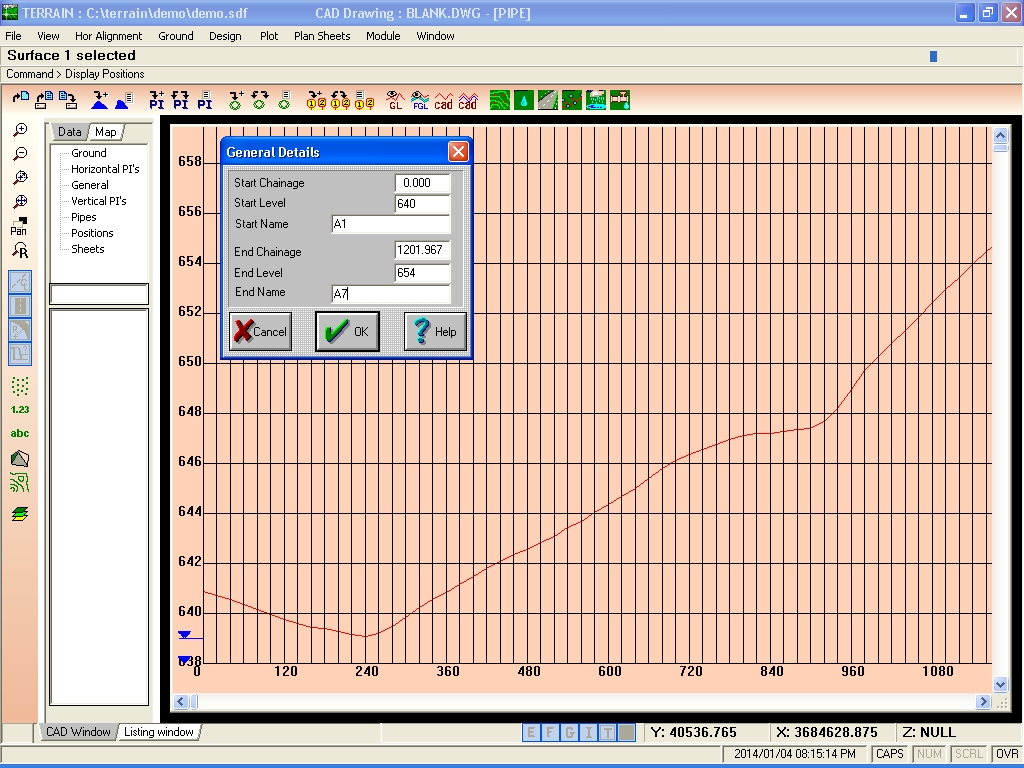

Specifying start / end levels for the design

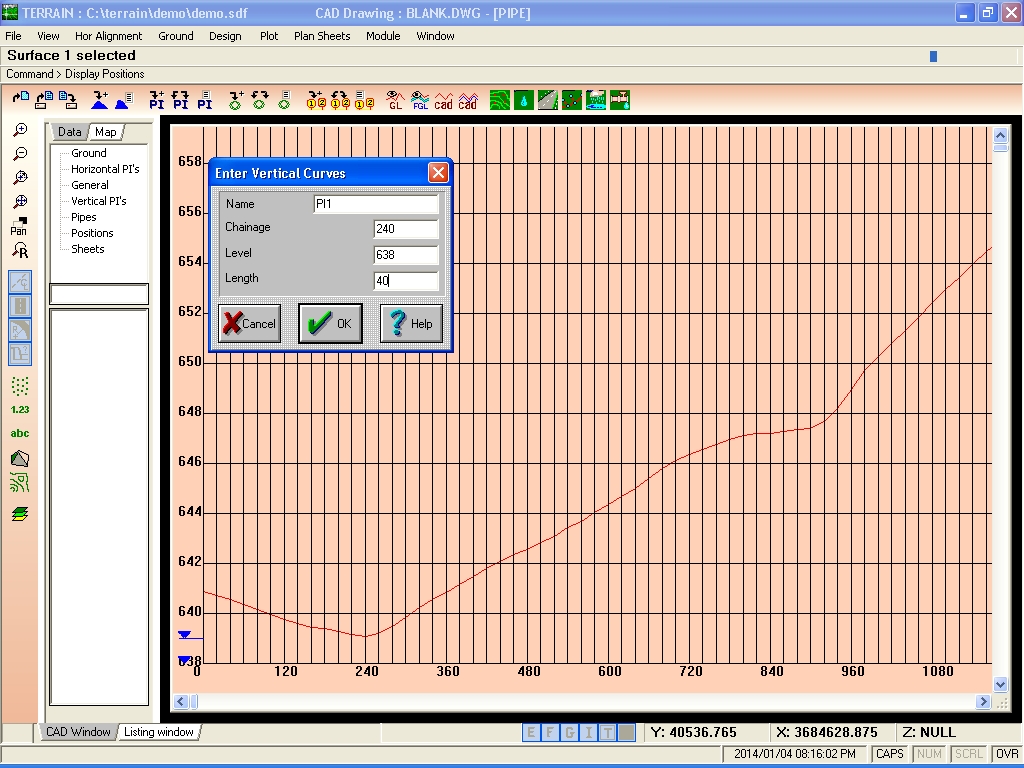

Specifying vertical curves for the pipeline

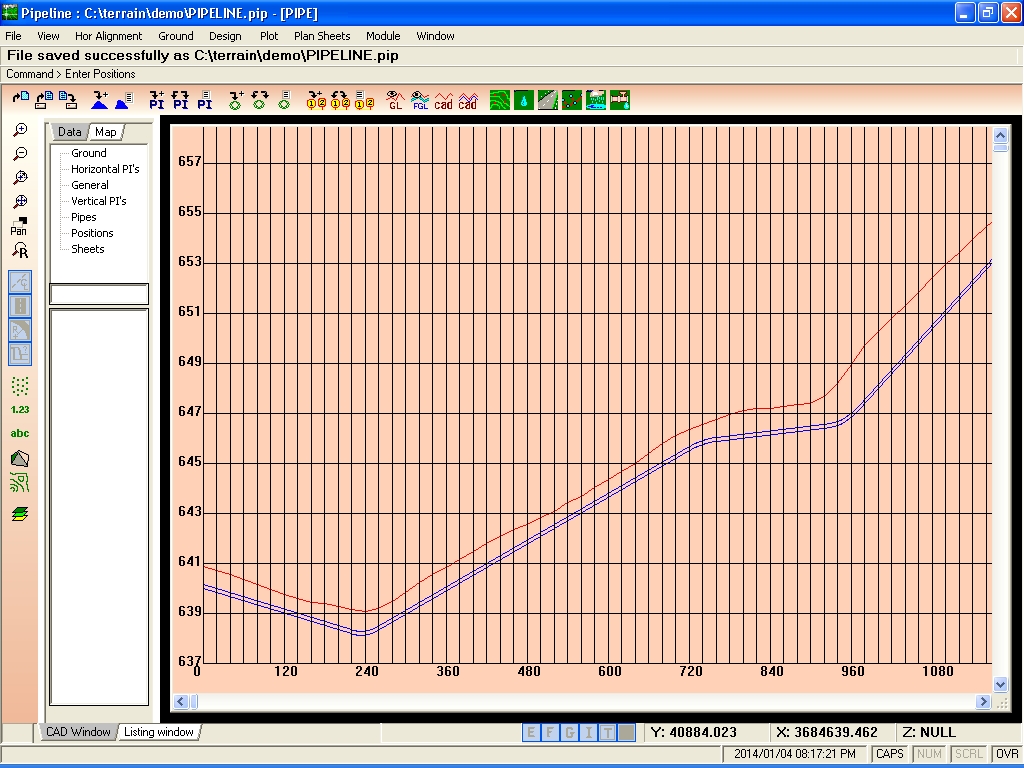

Pre-viewing final longitudinal section
Longitudinal section generated in CAD DWG format

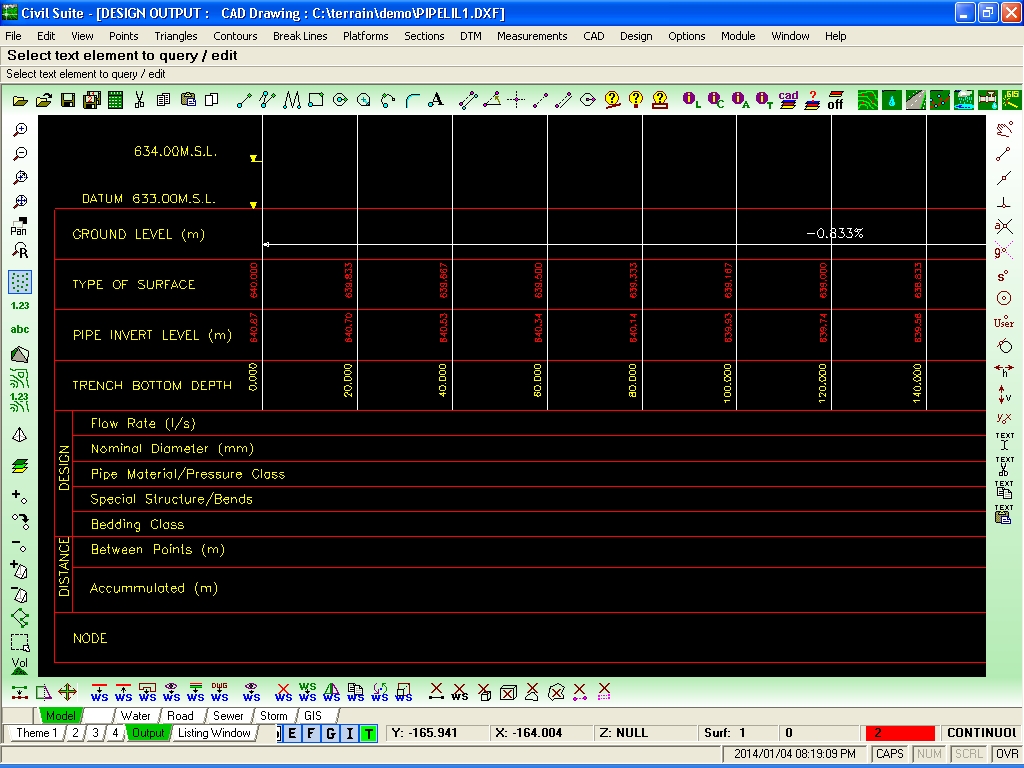

Longitudinal section details
These sample images show just some of the features of the Civil Suite engineering design software package. The modules in the Civil Suite include the terrain, road, sewer, water, stormwater, pipeline, CAD, GIS and photo modeller modules. Please use the arrows at the left and right of the screen images to navigate through the samples provided.

The pipeline module is in fact a combination of the roads and sewer modules giving the user the ability to prepare and design final longitudinal sections for pipelines. Unlike the sewer module, the pipeline module allows for the horizontal alignment to inlcude radius bends as in a road design. The user is able to define different pipe parameters along the route and also define the invert levels at various chainages along the route.   The pipeline module produces the final drawings in DXF and DWG formats.

For more information please also download the videos of the Civil Suite Pipeline module in action.  Kindly note that we will only release this video towards the end of January 2014.
Alternatively, for an interactive online demonstration please contact us and we will schedule a WebEx demonstration when convenient.
