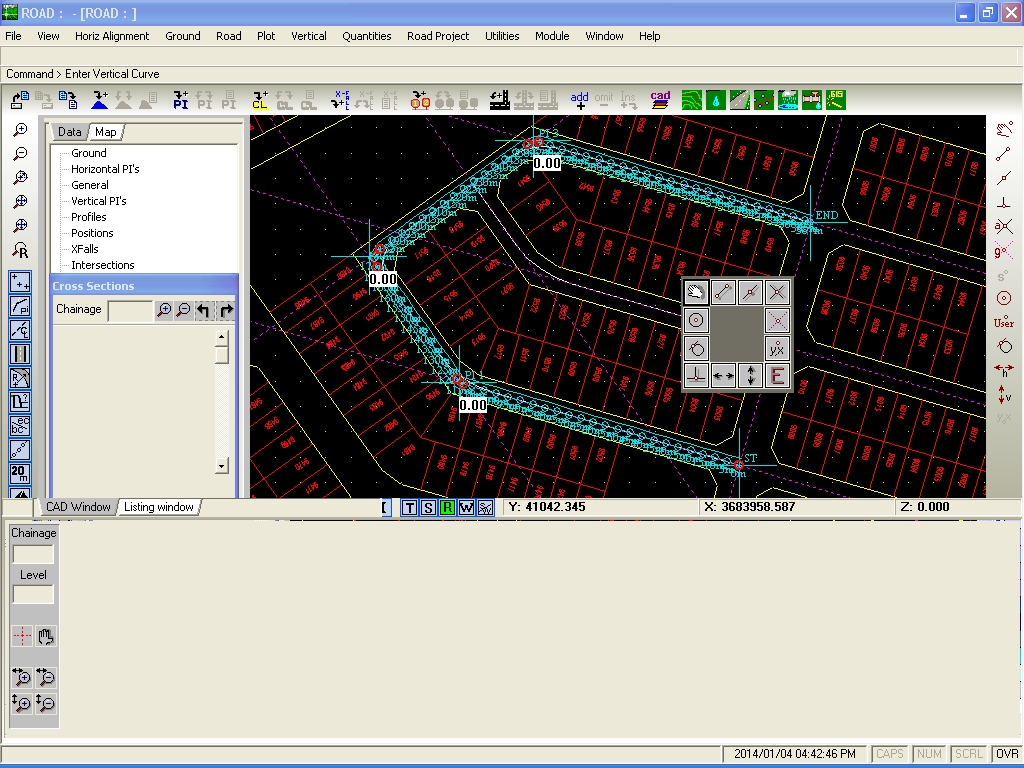

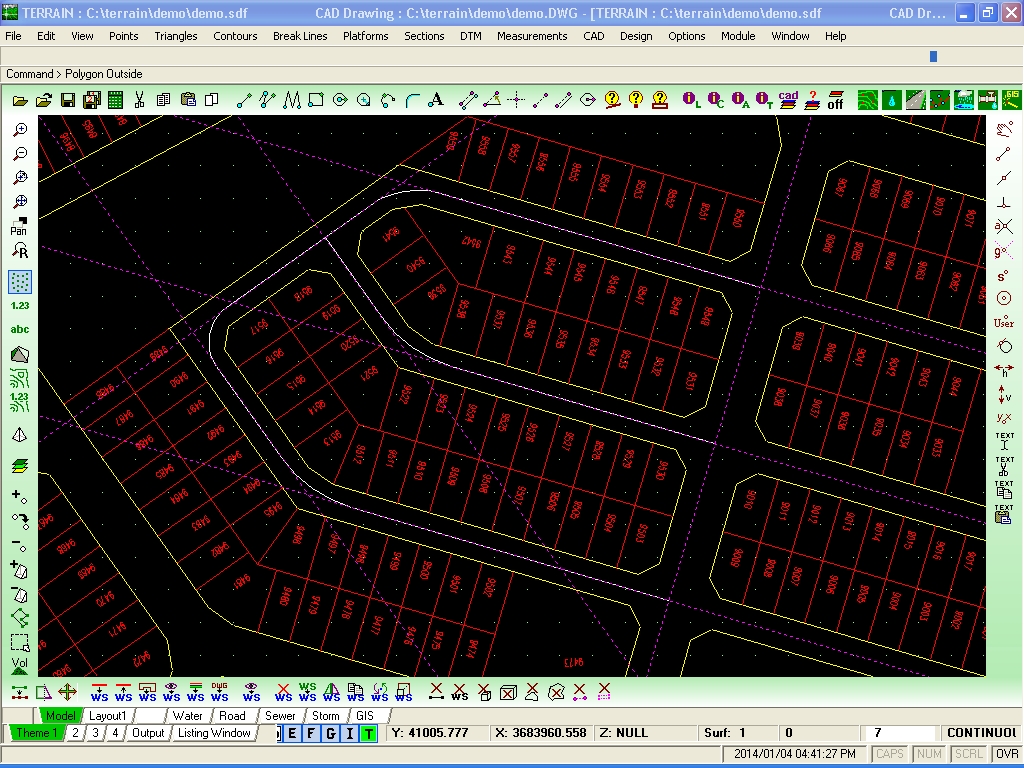

Defining the road centre lines

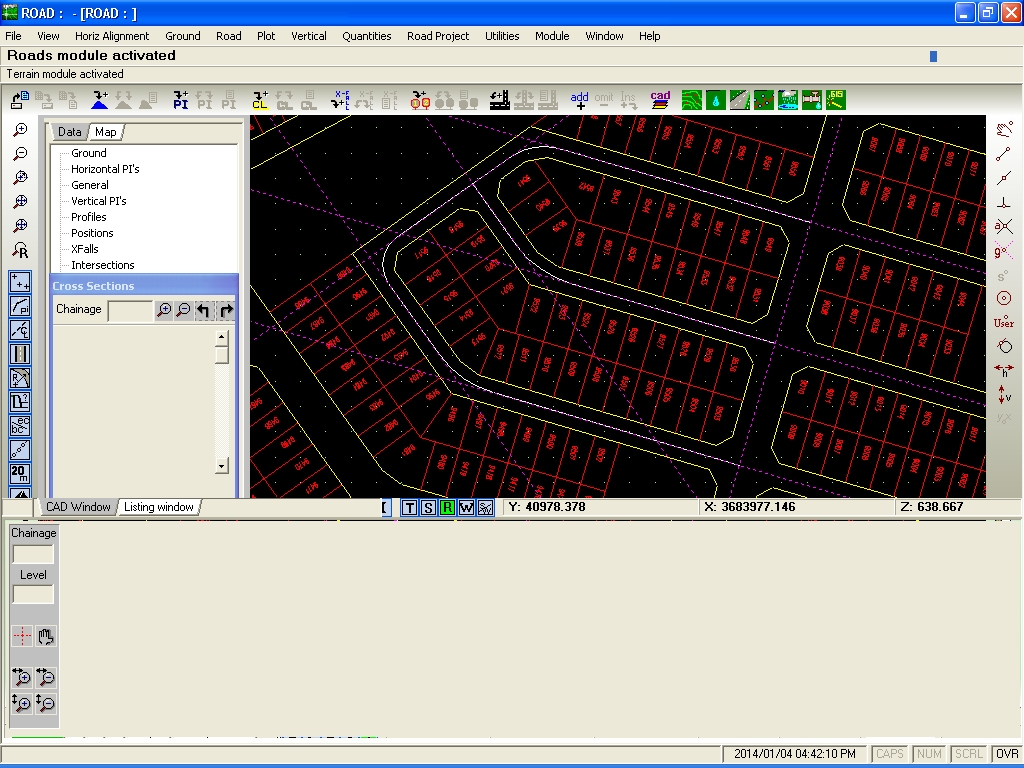

Roads module interface

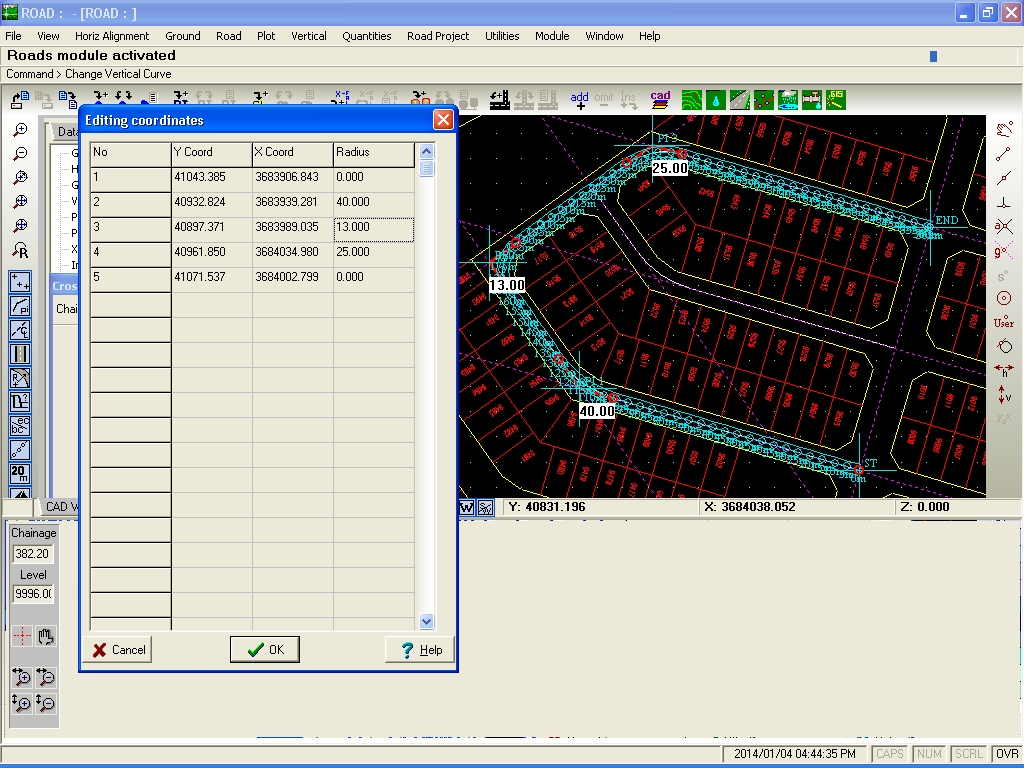

Coordinating road centre line coordinates
Editing horizontal alignment data

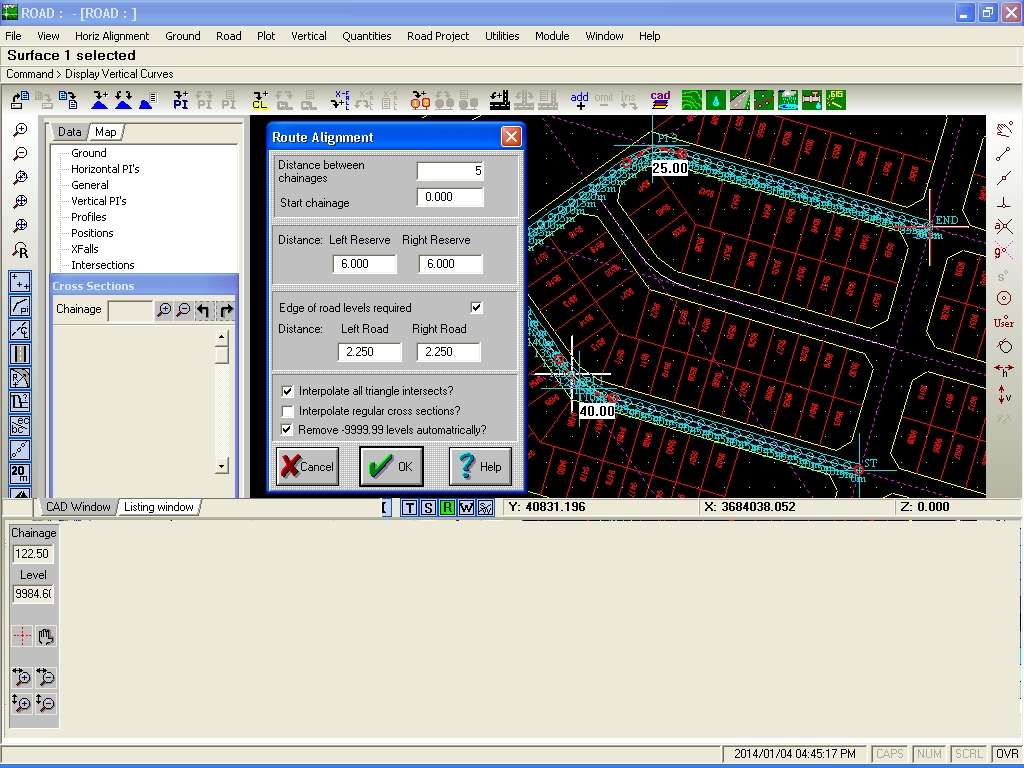

Running the horizontal alignment

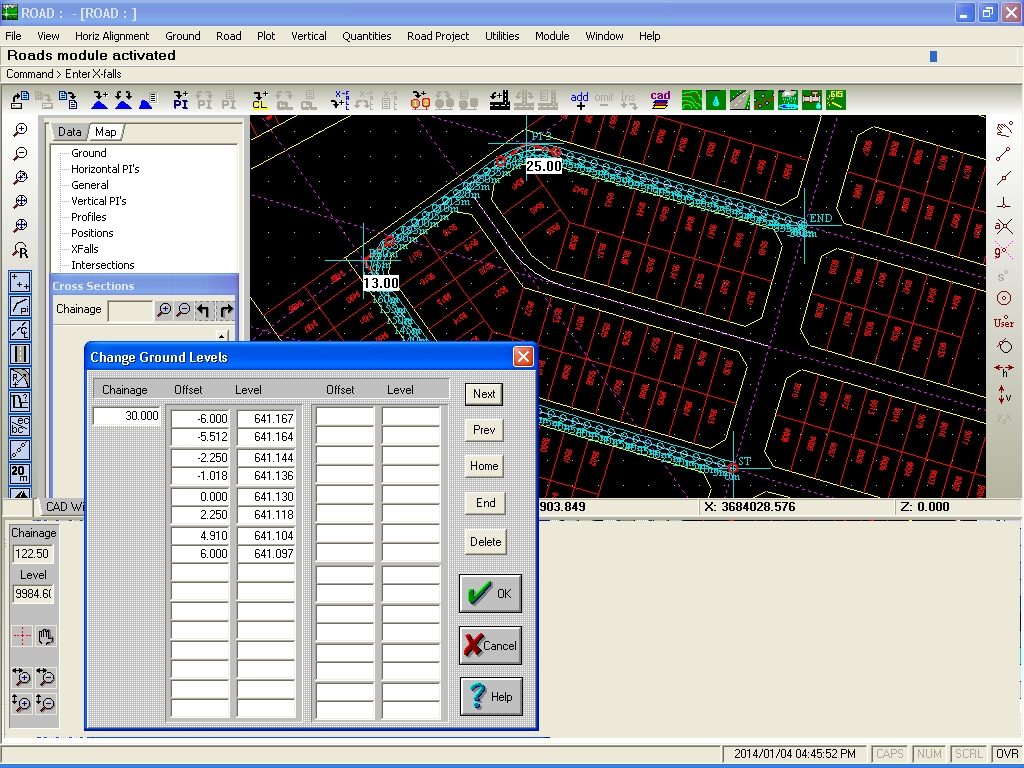

Pre-viewing ground levels as generated

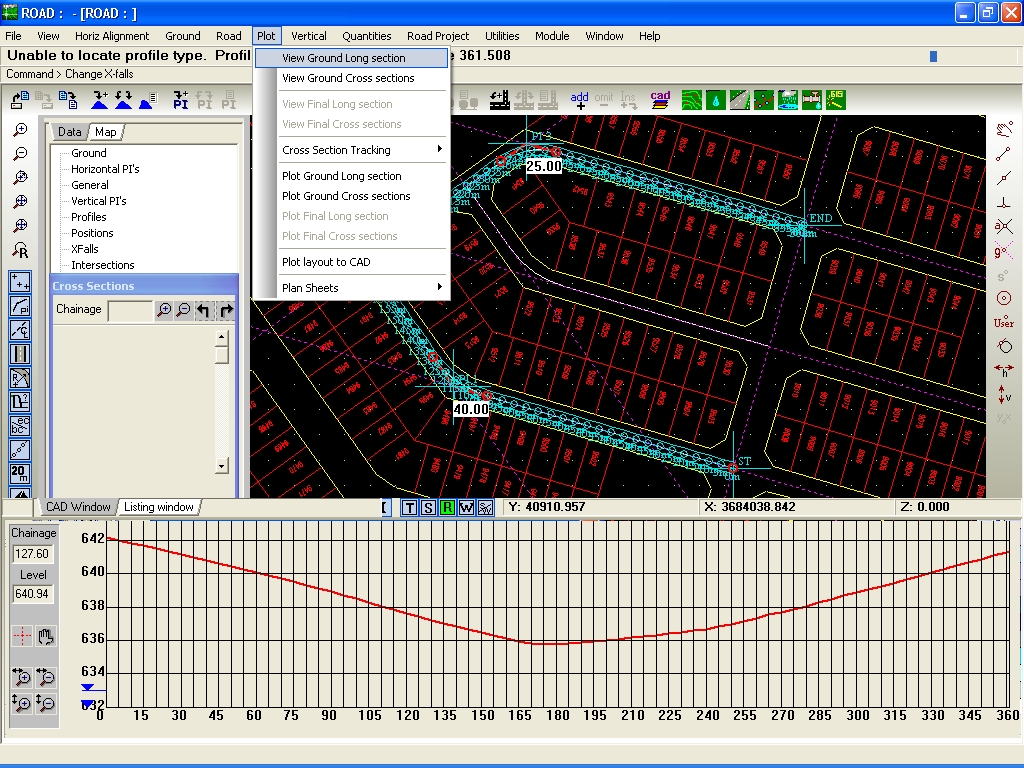

Pre-viewing the ground longitudinal section

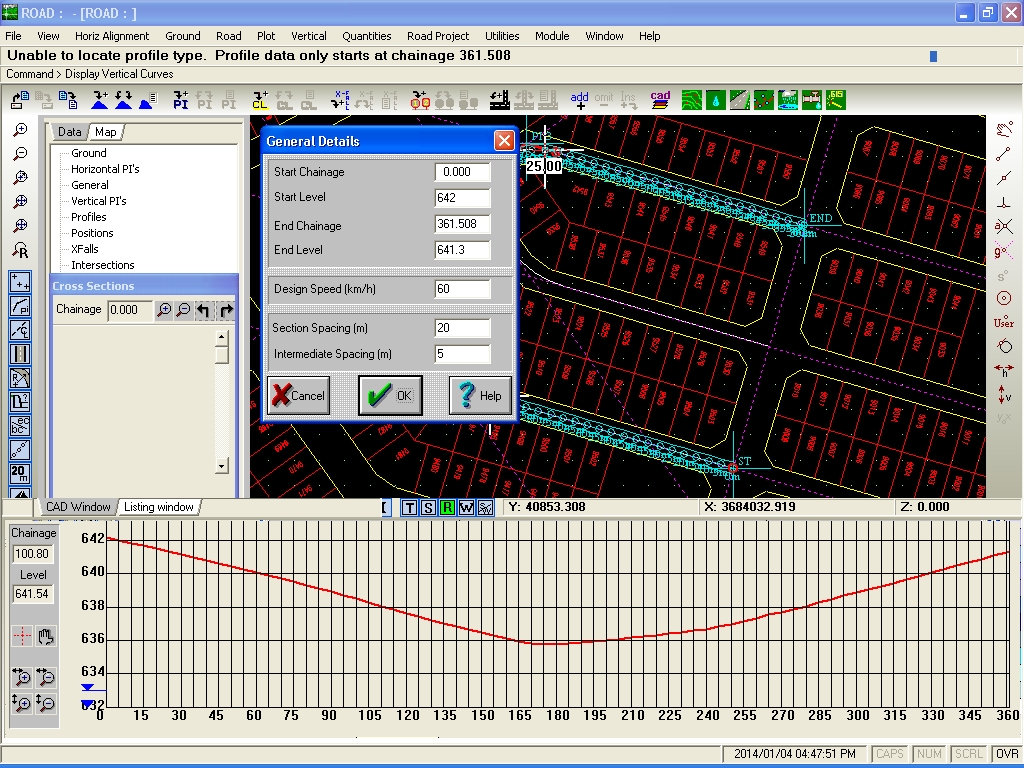

Specifying road start / end levels

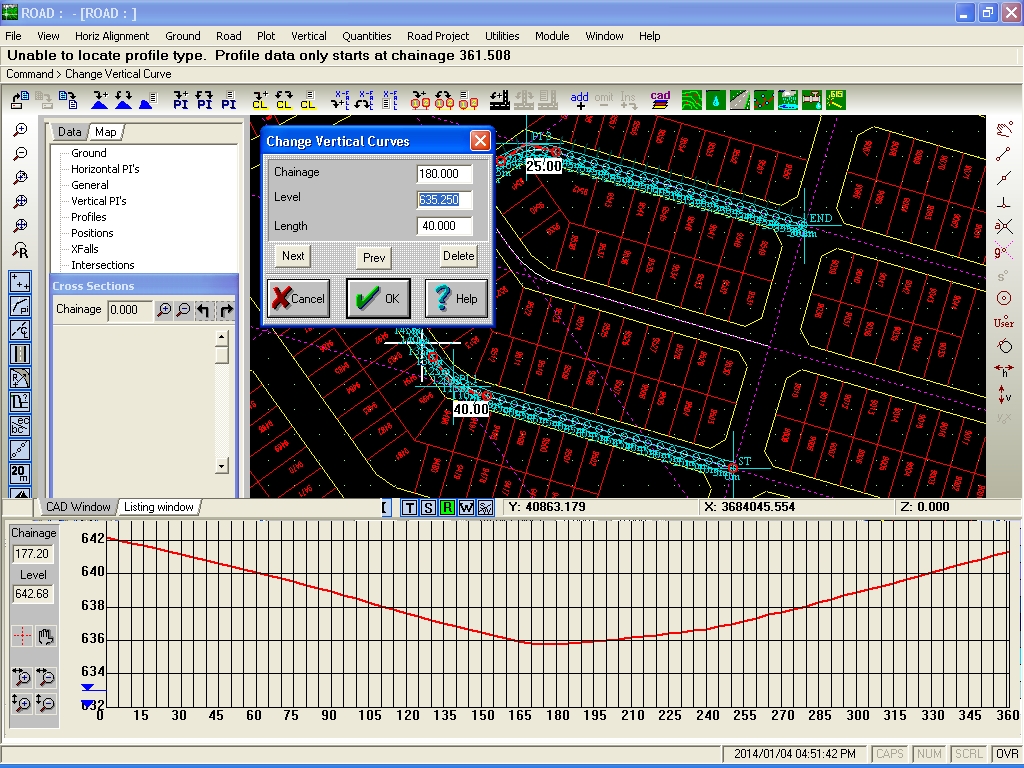

Entering vertical curve parameters

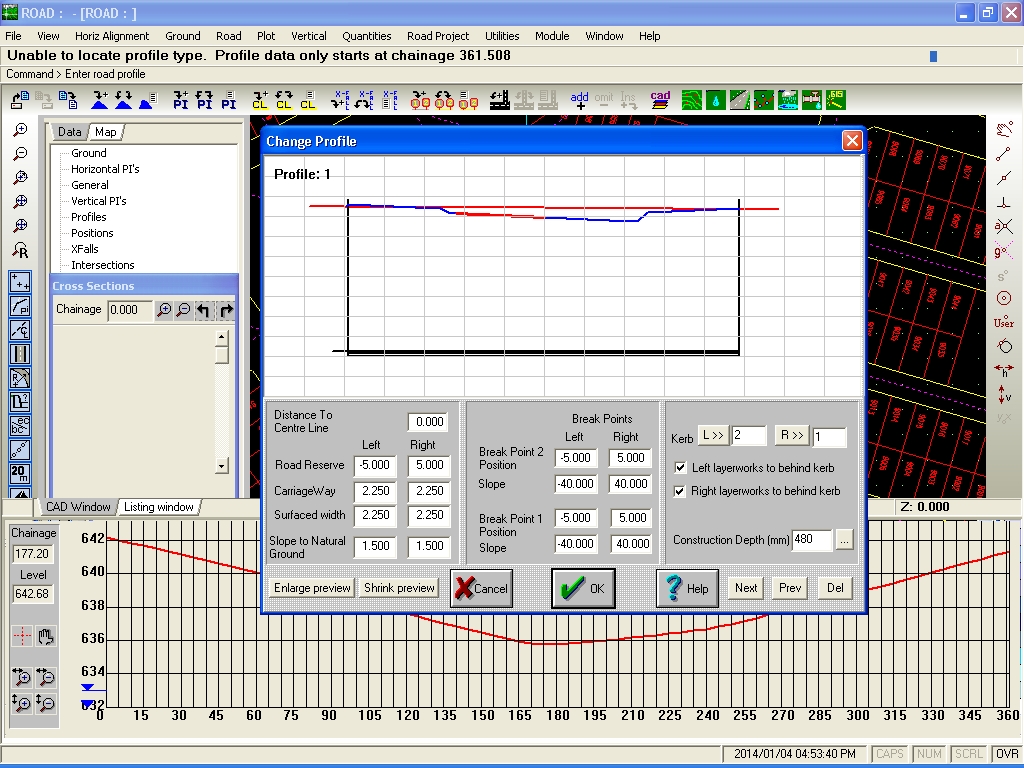

Specifying a typical road profile

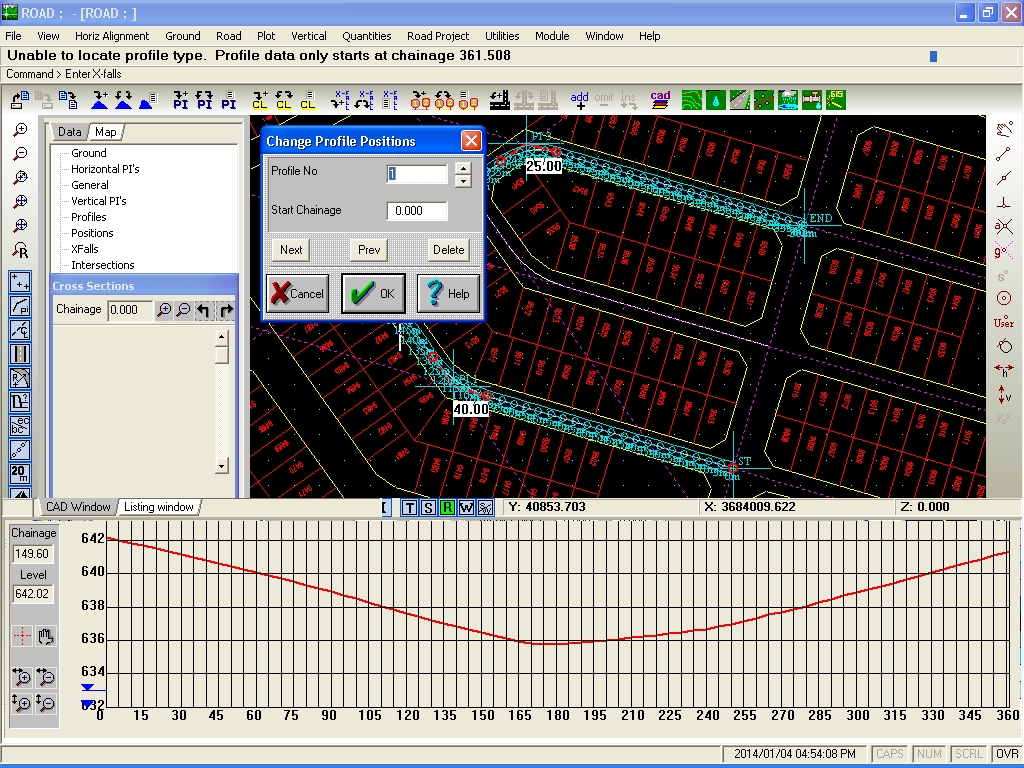

Specifying a profile position

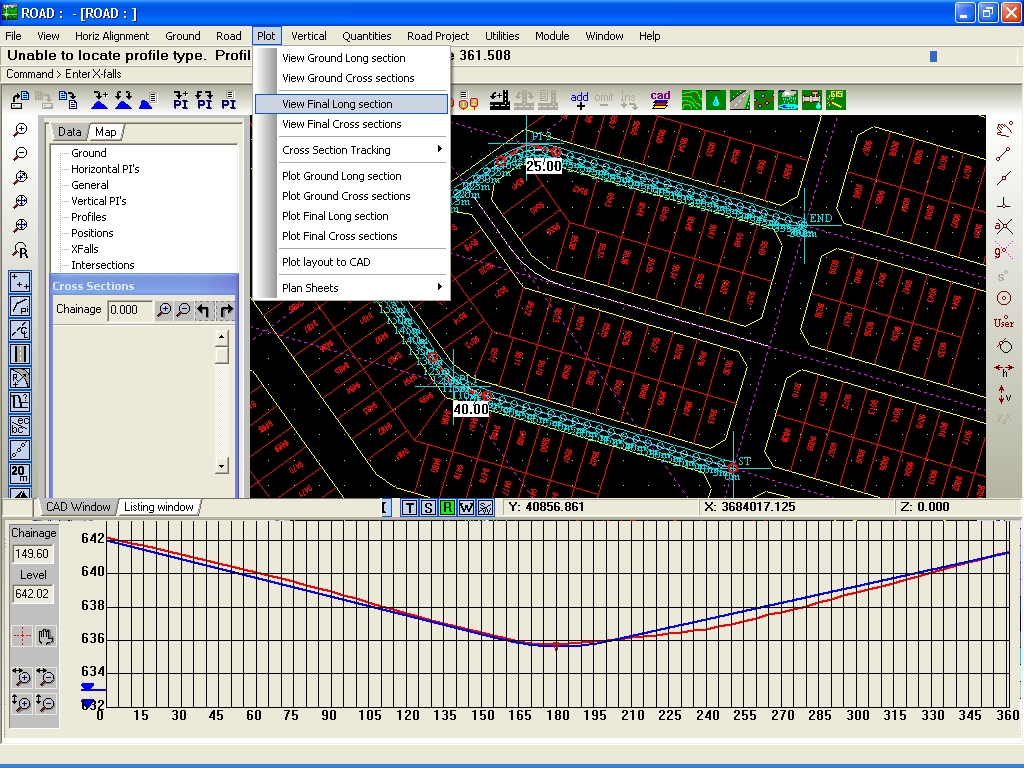

Pre-viewing final longitudinal section

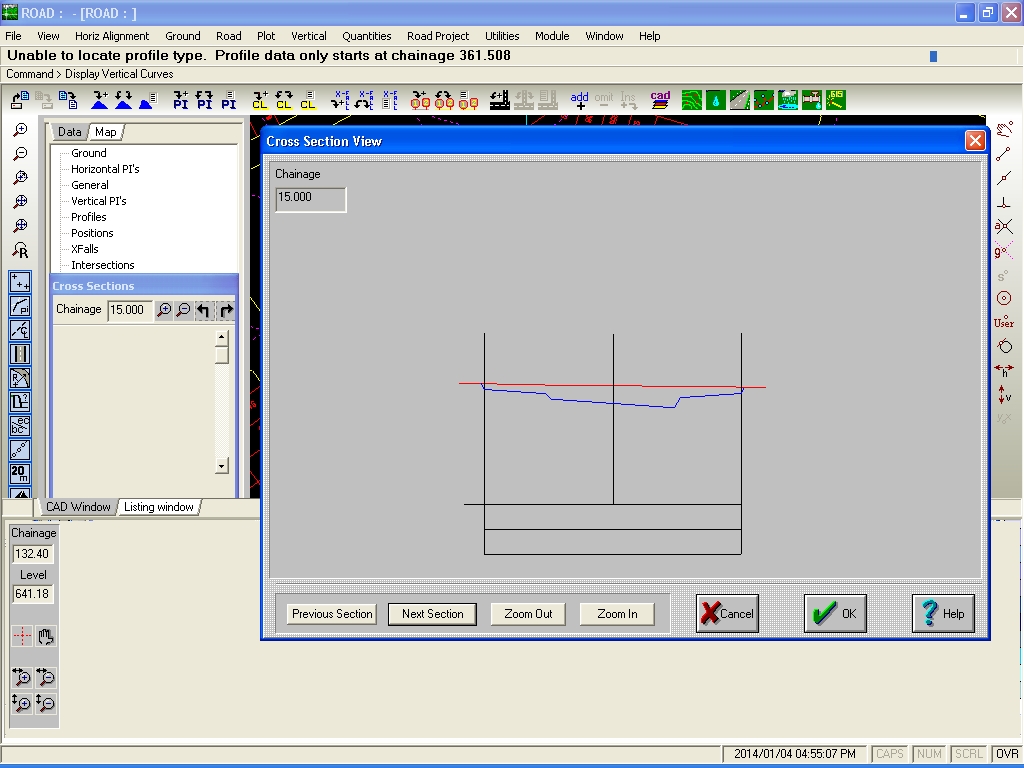

Viewing final cross section
Longitudinal section generated in CAD DWG format

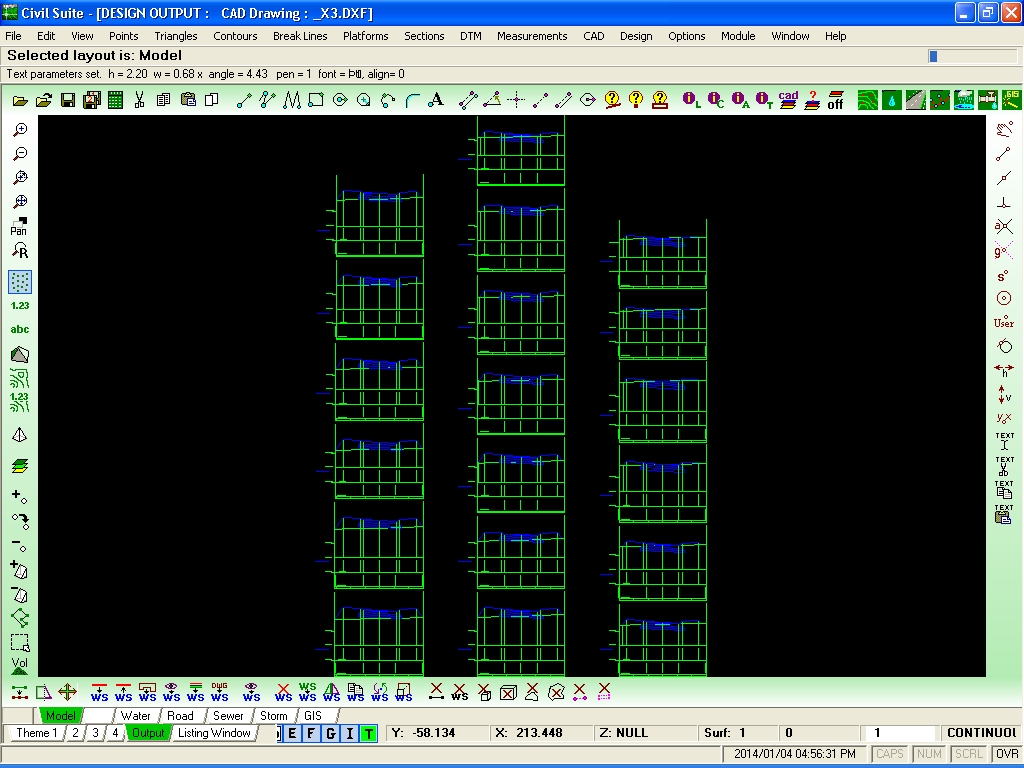

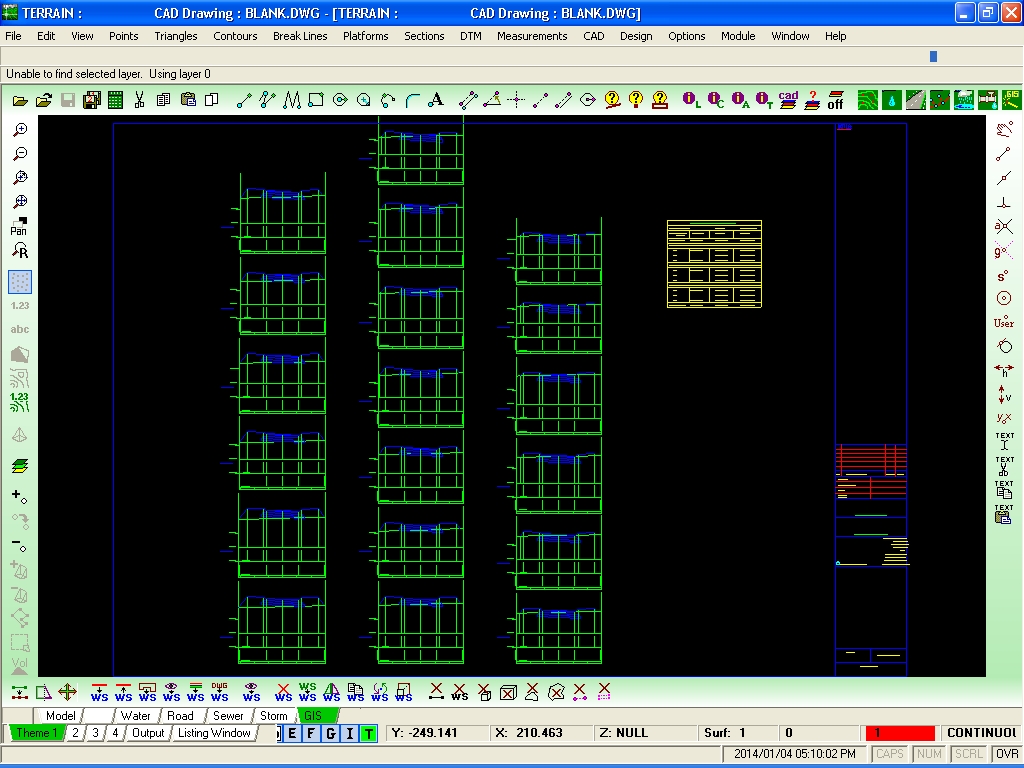

Cross sections generated in CAD DWG format
Typical cross section in CAD

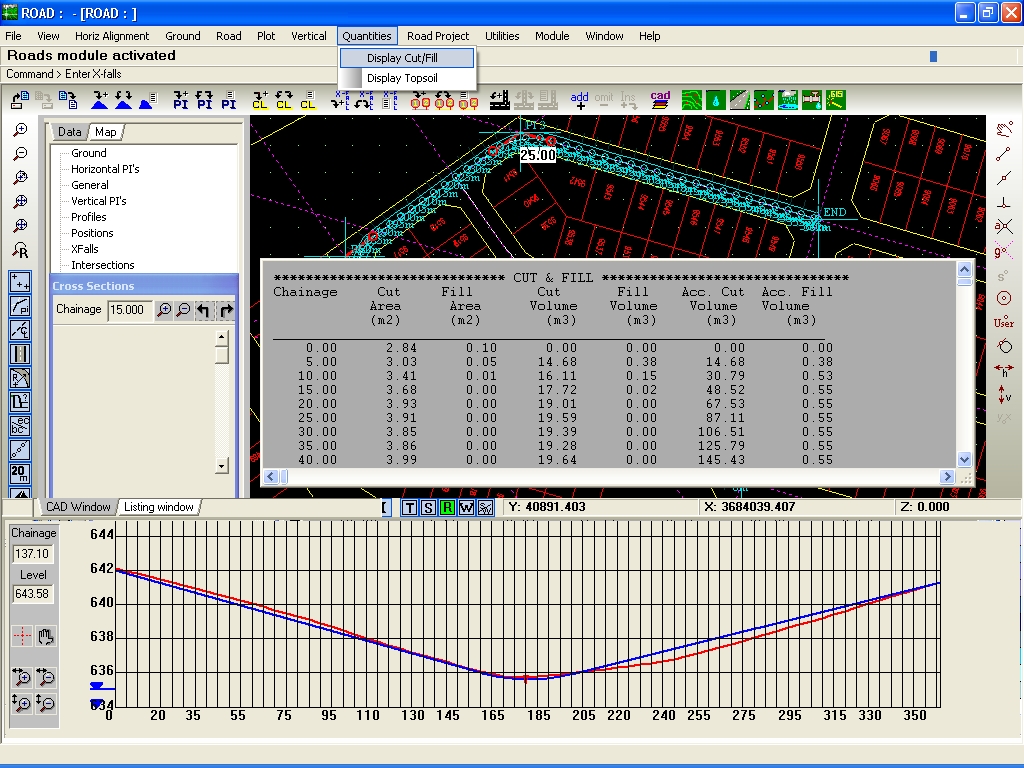

Cut / Fill volumes

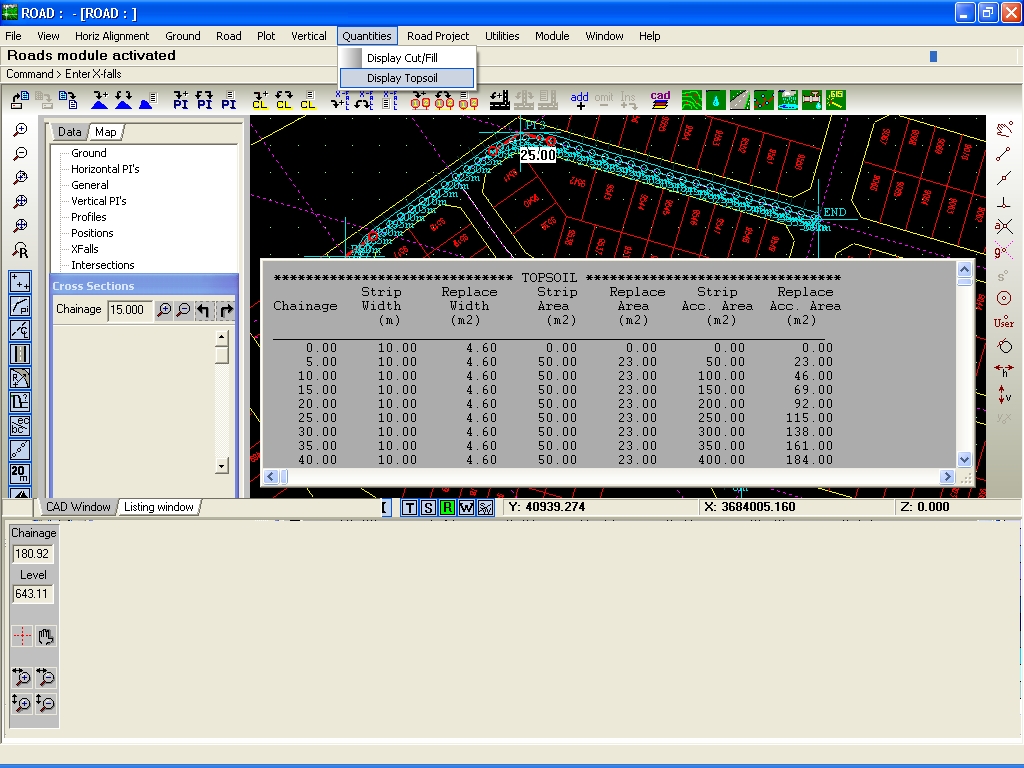

Topsoil stripping quantities

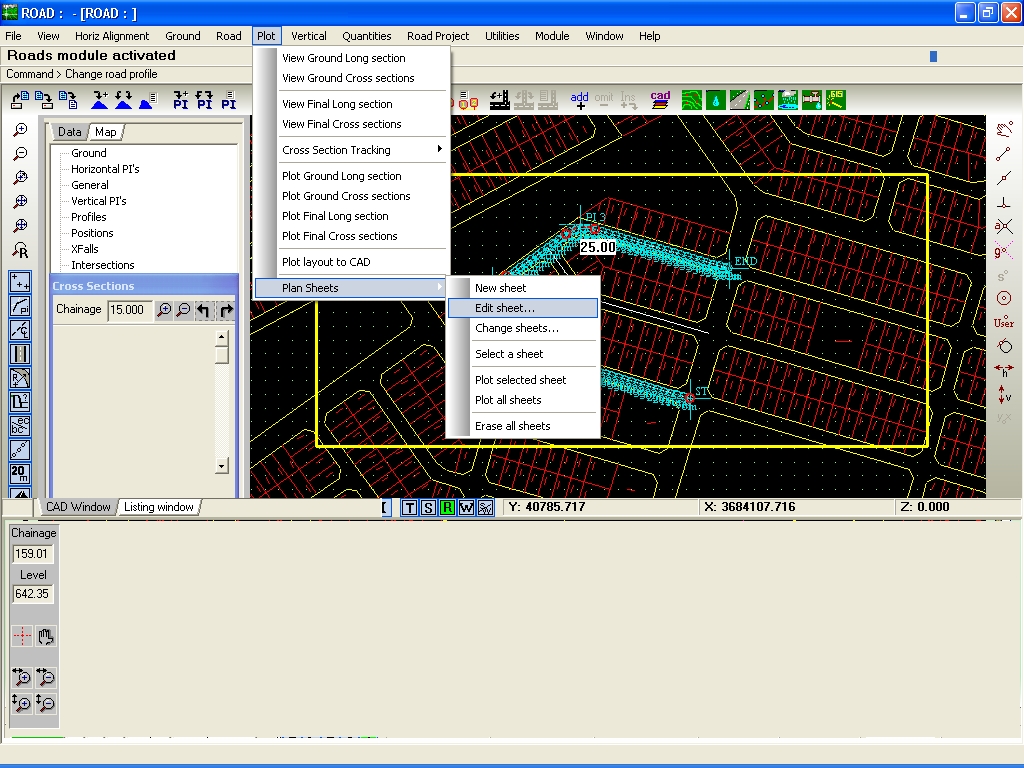

Defining a plot sheet layout to create a paperspace layout

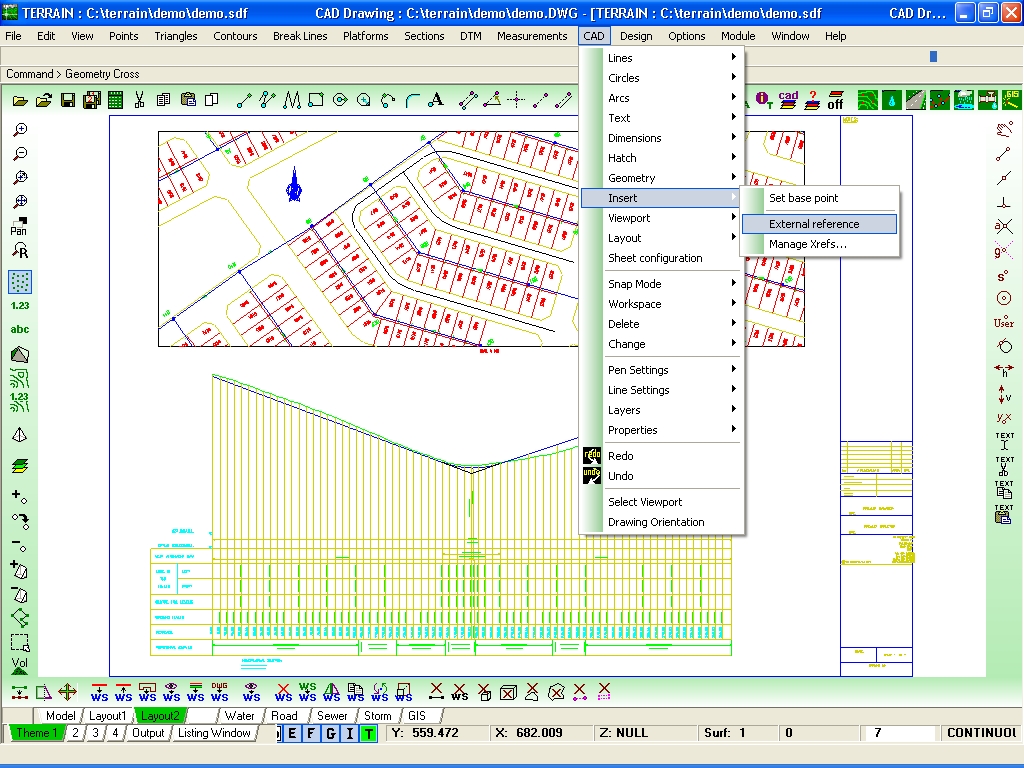

Inserting external reference DWG

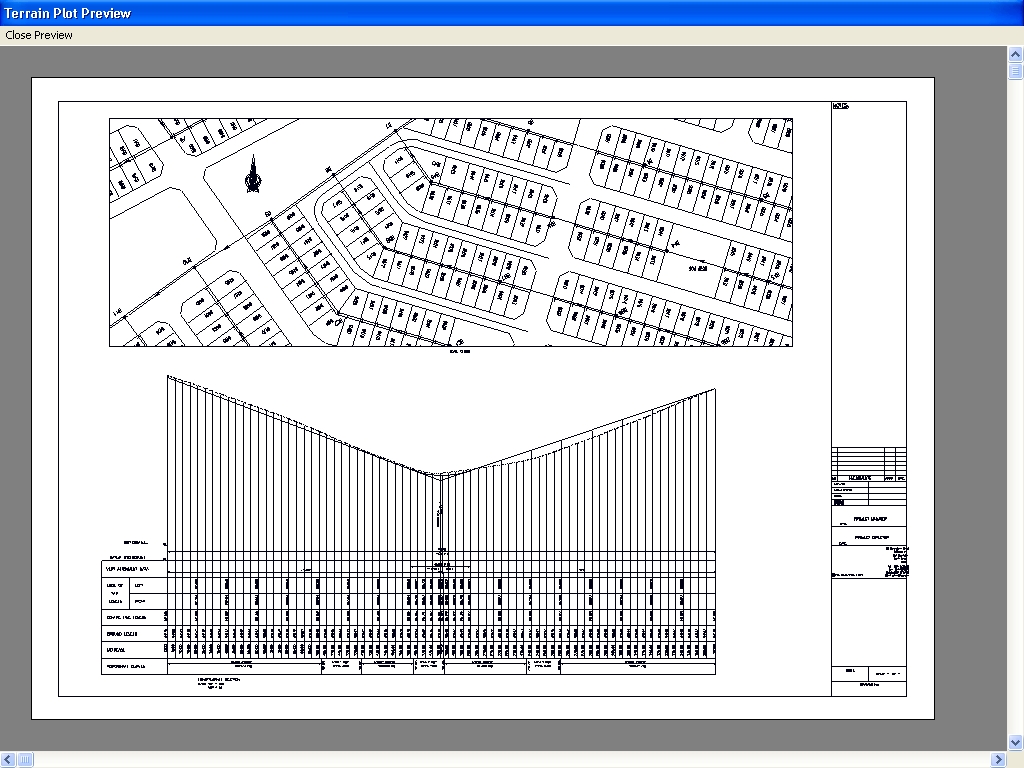

Pre-viewing paperspace layout for plotting

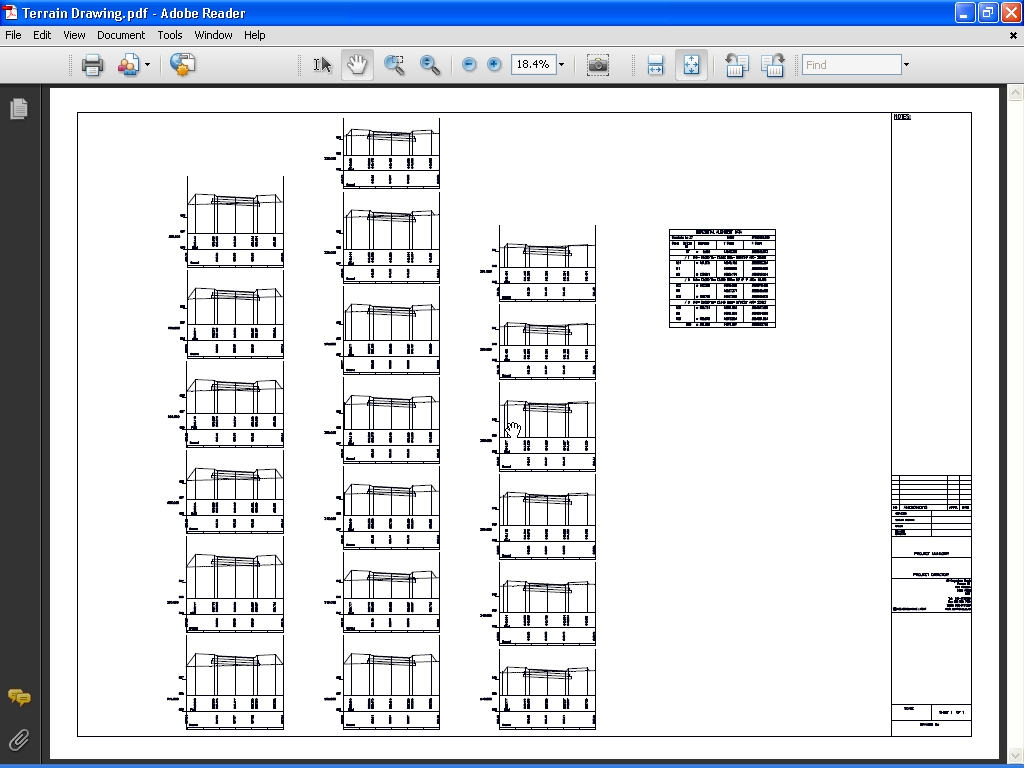

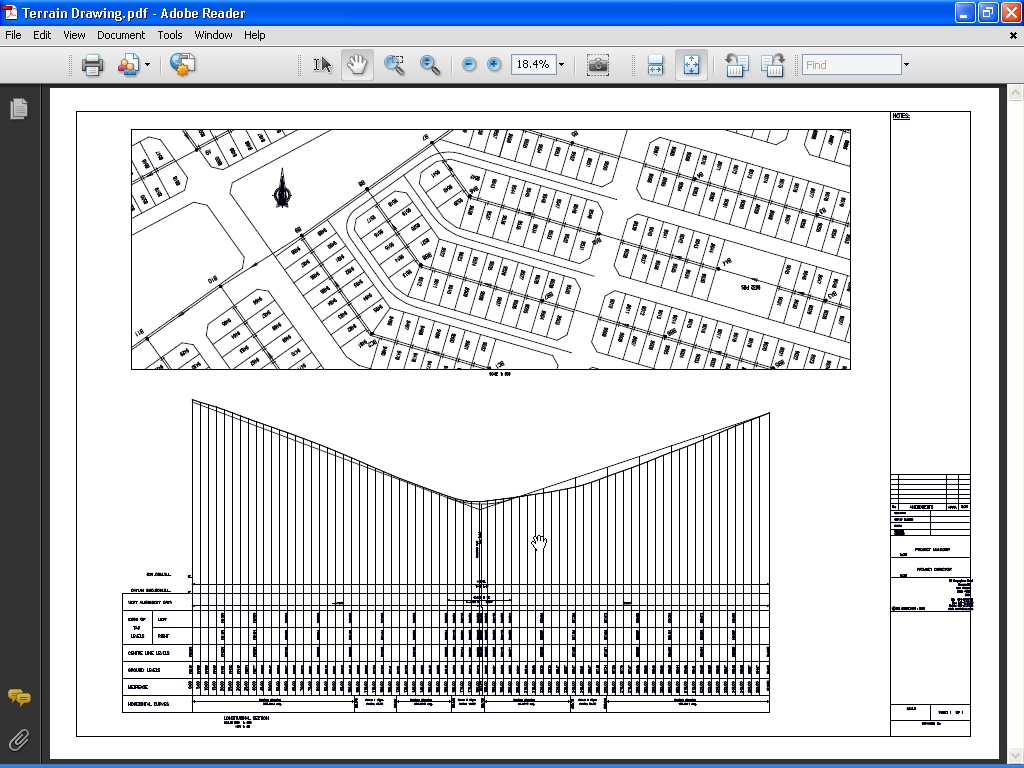

PDF file produced from Civil Suite

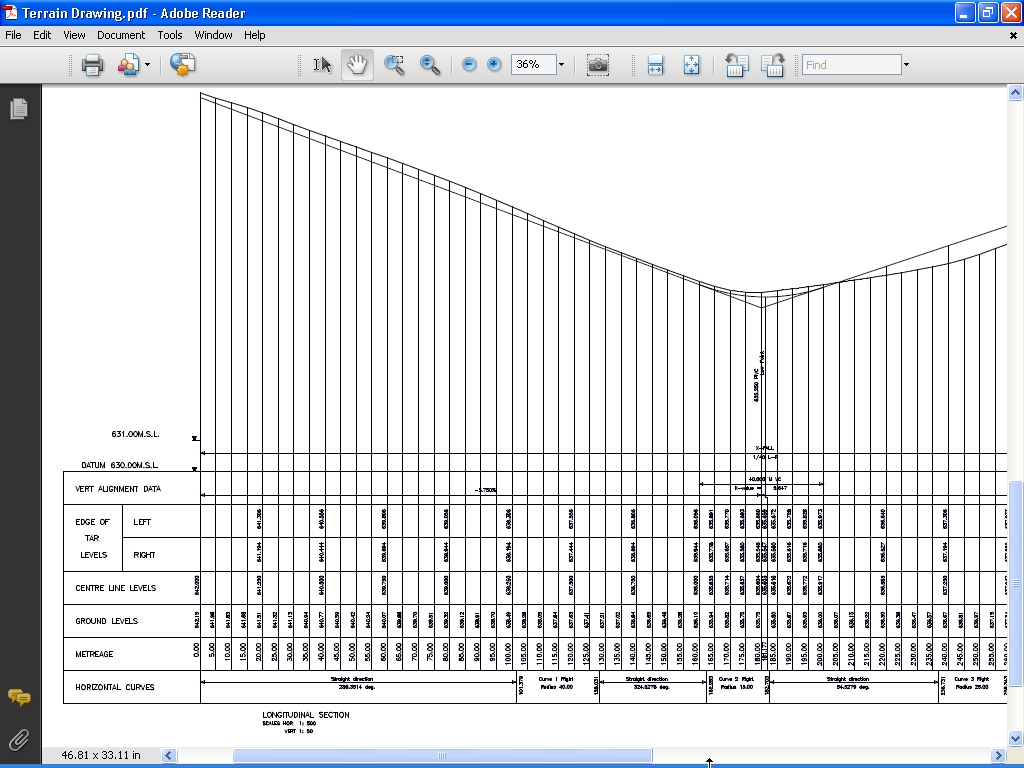

Typical road longitudinal section
Typical road cross sections in CAD
PDF file produced by the Civil Suite

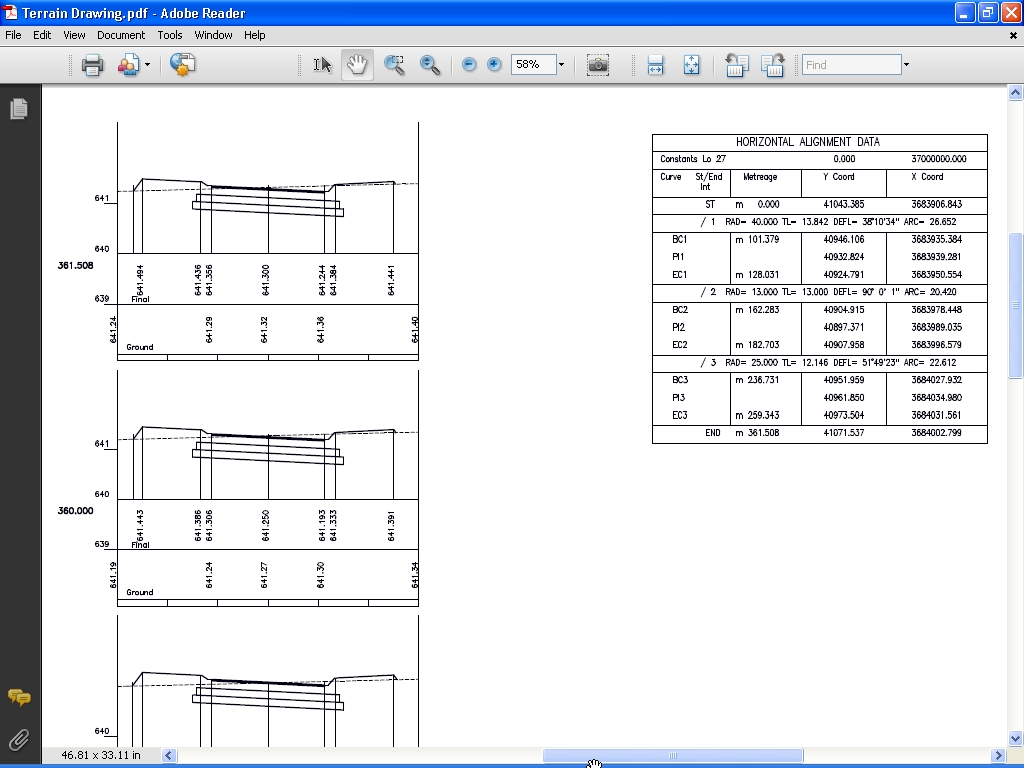

Typical cross section and setting out details

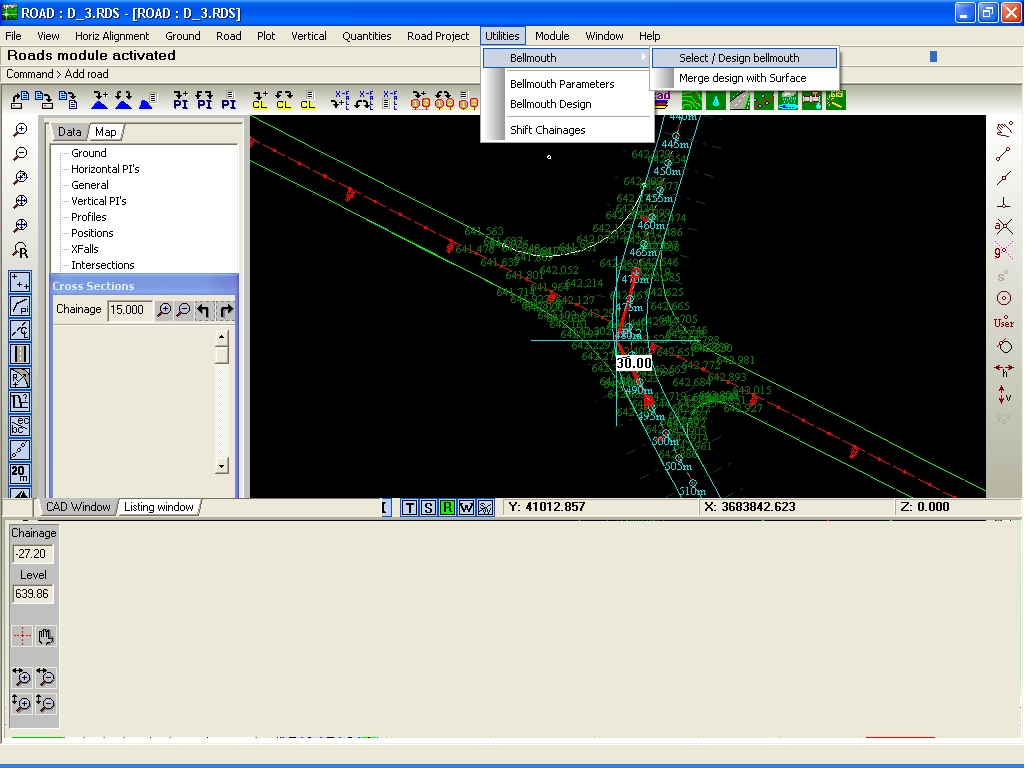

Demonstration of a bellmouth design

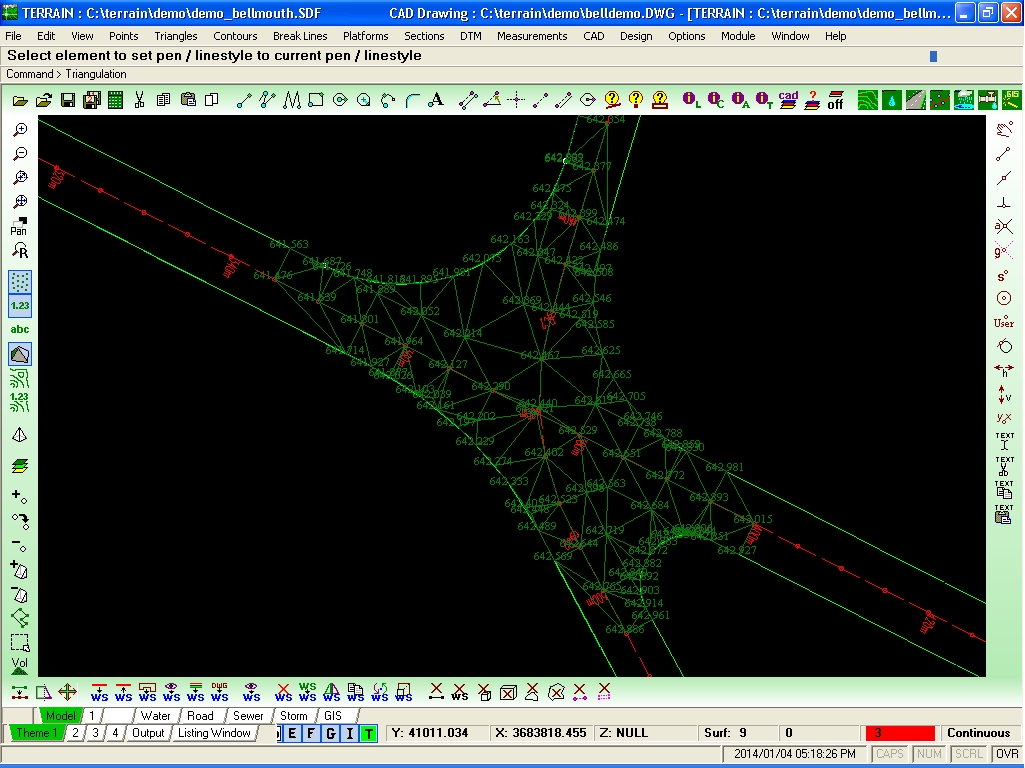

Simulated design of four bellmouth intersections

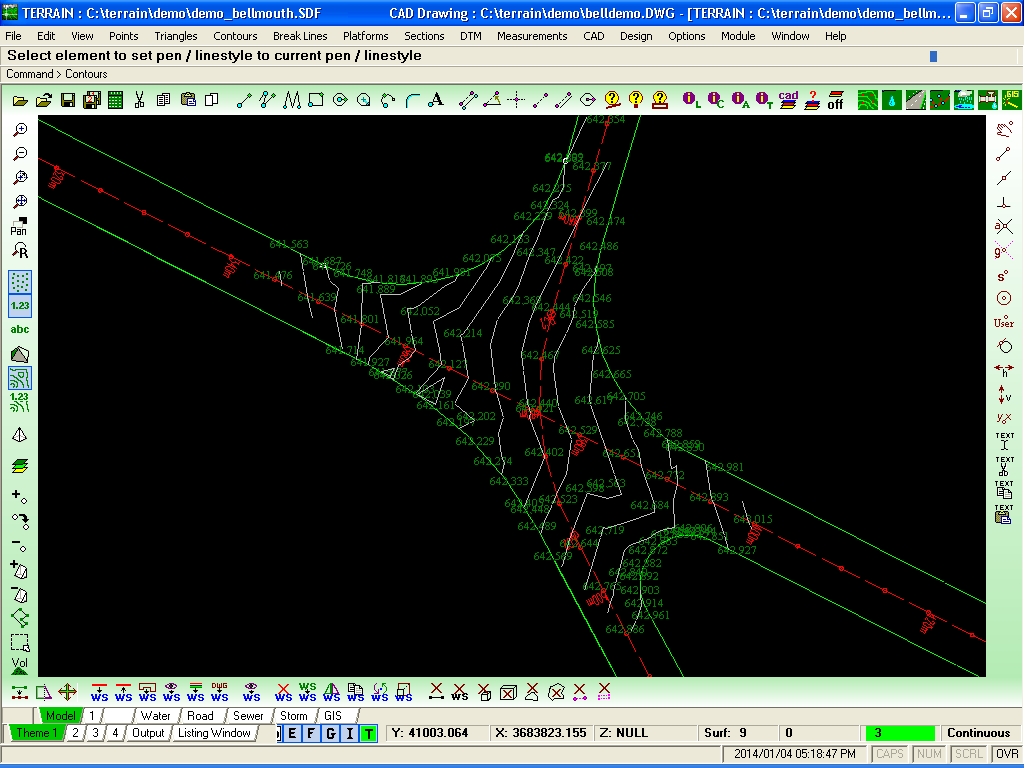

Contours of simulated bellmouth intersections

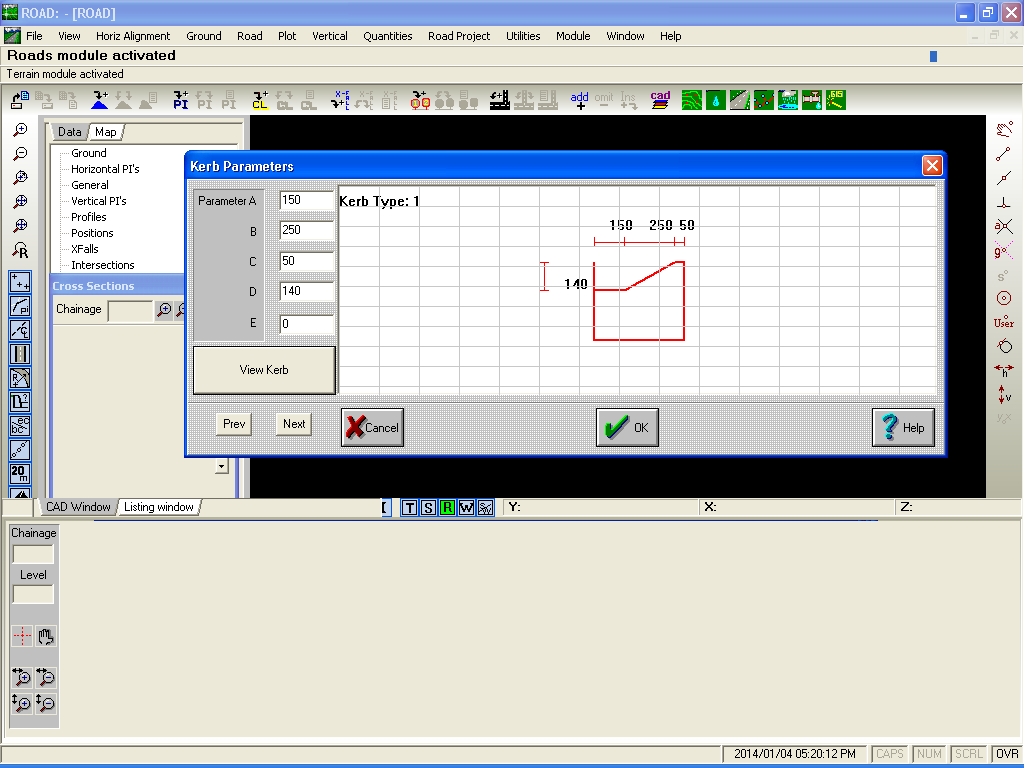

Typical kerb parameters

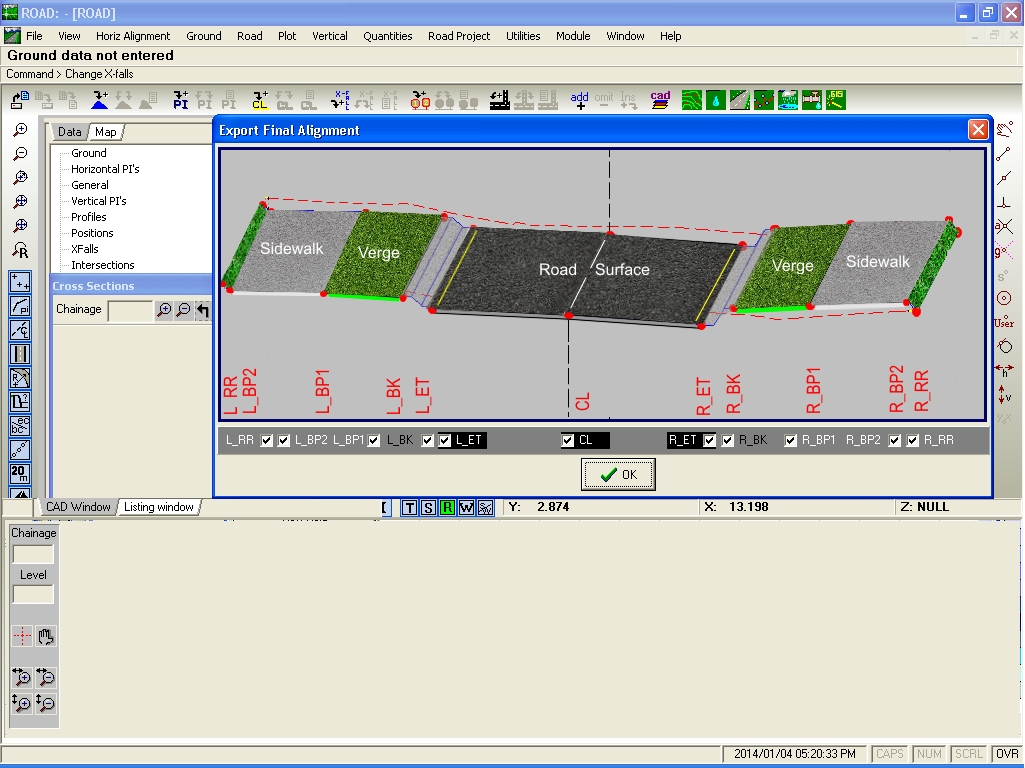

Exporting road levels and details
These sample images show just some of the features of the Civil Suite engineering design software package. The modules in the Civil Suite include the terrain, road, sewer, water, stormwater, pipeline, CAD, GIS and photo modeller modules. Please use the arrows at the left and right of the screen images to navigate through the samples provided.

The Roads module is a rewrite of the older standalone Roads program from approximately 20 years back and is extremely efficient at the design and plotting of roads for residential townships. Just one unique feature added in recently is the ability to define a network of roads and incorporate the output of each individual road design into a Terrain surface. This surface can subsequently be used for the designs of the sewer or stormwater pipe longitudinal sections. We have also recently upgraded the Roads module to perform a nearly fully automated design of the intersection / bell mouth design.

For more information please also download the videos of the Civil Suite Roads module in action.
Alternatively, for an interactive online demonstration please contact us and we will schedule a WebEx demonstration when convenient.
